Safety included

Layher sets standards. All rolling towers and assembly scaffolding conform to DIN EN 1004. Inspections by independent institutions such as TÜV and the professional trade associations with the GS symbol are a guarantee of this.

FOR THE HIGHEST PERFORMANCE AT GREATER HEIGHTS YOU NEED GOOD STABILITY.

Castors

Robust castors for good maneuverability and steady positioning when working. A range of castor coatings allow them to be used on delicate floor surfaces as well. The steel spindles provide all easy and precise height adjustment and distribute the load centrally on the locked castor. The stability is increased as a result, so that the user can work efficiently.

Ladder Frames

The ladder frame is a framework and also serves as a ladder. The ribbing on the steps ensures a high level of slip and grip safety in a vertical ladder.

Ladder frames are available in lengths of 1.00 m and 2.00 m and in widths of 0.75 m and 1.50 m.

Long, conical pipe couplings ensure a secure and smooth plug connection of one ladder frame to another, which can be secured easily using a spring cotter pin.

Guardrails and diagonal braces

Unsurpassed quick and tool-free connection. With a gentle press the claw snaps on automatically. The range of colors for the claw fingers on guardrails and diagonal braces helps where various different components are present – which saves time.

Decks

Robust decks made of aluminum frames with plywood inserts and snap-on claws enable easy handling.


They have non-slip profiles for firm and safe footing, even when wet. At a width of 68 cm the largest possible working area is achieved.

The snap-on claws, which come in a range of shapes, allow easy 1-man installation and at the same time provide 4-way lift-off protection.

The toe-boards, which protect against falling material or tools, form a self-retaining ring to protect the maximum working area.

Stability

The stability of the mobile scaffold must be guaranteed in all phases of installation and removal. Depending on the installation height and whether the scaffold is built in an open or enclosed area, the following steps must be taken:

  • Installation of mobile beams
  • Use of stabilizers
  • Ballast

Castors

Robust castors for good maneuverability and steady positioning when working. A range of castor coatings allow them to be used on delicate floor surfaces as well. The steel spindles provide all easy and precise height adjustment and distribute the load centrally on the locked castor. The stability is increased as a result, so that the user can work efficiently.

Ladder Frames

The ladder frame is a framework and also serves as a ladder. The ribbing on the steps ensures a high level of slip and grip safety in a vertical ladder.

Ladder frames are available in lengths of 1.00 m and 2.00 m and in widths of 0.75 m and 1.50 m.

Long, conical pipe couplings ensure a secure and smooth plug connection of one ladder frame to another, which can be secured easily using a spring cotter pin.

Guardrails and diagonal braces

Unsurpassed quick and tool-free connection. With a gentle press the claw snaps on automatically. The range of colors for the claw fingers on guardrails and diagonal braces helps where various different components are present – which saves time.

Decks

Robust decks made of aluminum frames with plywood inserts and snap-on claws enable easy handling.


They have non-slip profiles for firm and safe footing, even when wet. At a width of 68 cm the largest possible working area is achieved.

The snap-on claws, which come in a range of shapes, allow easy 1-man installation and at the same time provide 4-way lift-off protection.

The toe-boards, which protect against falling material or tools, form a self-retaining ring to protect the maximum working area.

Stability

The stability of the mobile scaffold must be guaranteed in all phases of installation and removal. Depending on the installation height and whether the scaffold is built in an open or enclosed area, the following steps must be taken:

  • Installation of mobile beams
  • Use of stabilizers
  • Ballast

MORE SAFETY ON CONSTRUCTION

To comply with European safety laws and requirements, the Layher product portfolio includes Safety Structure P2. Safety Structure P2 provides collective protection.

If you already possess a Layher Rolling Tower, then you can convert this into the P2 variant easily.

SAFETY STRUCTURE P2.

The simple assembly principle
All-round side protection already present when the top platforms are accessed.
More stability in the tower thanks to additional bracing.

Platforms spaced 2 m apart

Maximum safety during assembly , during ascent and descent and during work.
Easy passing of rolling tower parts or working materials from level to level.

The innovative Uni assembly hook

Assembly is considerably facilitated, and  fast and trouble-free assembly and dismantling are assured.
Fit the first ladder frame. Attach the Uni assembly hooks and position the second ladder frame for fitting of the rear guardrails.
Swing ladder frame with rear guardrail upwards and fit into place.
Insert diagonal braces and access deck.
Ascend to next level and install additional rear guardrails at 0.50 m.
Fit the first ladder frame. Attach the Uni assembly hooks and position the second ladder frame for fitting of the rear guardrails.
Swing ladder frame with rear guardrail upwards and fit into place.
Insert diagonal braces and access deck.
Ascend to next level and install additional rear guardrails at 0.50 m.

THE RIGHT ROLLING TOWER FOR EVERY JOB

ZIFA P2 – THE READY-TO-USE TOWER FOR WORK AT LOW HEIGHTS


Folded together flat for storage and transport – unfold it, insert the deck. That's all.

  • The basic unit will fit through standard room doors when assembled and fully loaded.
  • Aluminium basic tower for alternating-sequence push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100), also as an access deck for risk-free internal access.
  • Strong and permanently fitted castors ensure excellent stability.
  • Working height: 7.76 m
  • Area of working platform: 0.75 x 1.80 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI LIGHT P2 – THE PRACTICAL ROLLING TOWER WHEN WORKING IN RESTRICTED SPACES

The UniLight Tower P2 is a compact and lightweight rolling tower for safe and convenient work wherever you used to need a ladder – the generous 1.3 m² platform area permits unimpeded movement and provides space for tools and material.



  • Its low weight and convenient dimensionsmake it very easy to transport, even in a van.
  • Aluminium ladder frames for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platform already integrated.
  • Strong castors (permanently fitted) ensure outstanding stability.
  • Rigid steel mobile beam to widen the base; with spigots for optional mounting of ladder frames when working on ceilings or walls.
  • Working height: 9.26 m
  • Area of working platform: 0.75 x 1.80 m.



You can find further information in the corresponding Instruction for Assembly and Use.

UNI COMPACT P2 AS A COMPACT UNIVERSAL TOWER WITH DOUBLE-WIDTH WORK DECK

The universal Uni Compact P2 tower with double-width work deck yet with compact basic dimensions – offers ample room for working at heights, even with materials, while still leaving plenty of freedom of movement.



  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrailsand diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.38 m and above.
  • Working height 10.38 m
  • Area of working platform: 1.5 x 1.8 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI STANDARD P2 – THE MOST VERSATILE ROLLING TOWER FOR VERY HIGH-LEVEL WORK

The Uni Standard P2 – for work on walls and ceilings, on machinery, in technical facilities, factories and warehouses, indoors and outdoors.



  • Aluminium ladder frames for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100), -also as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: rigid or telescopic mobile steel beam , with spigots for optional mounting of ladder frames for work on ceilings and walls; alternatively with tower supports.
  • For even more safety and even more convenient access, suspended ladders with wide steps.
  • Working height 13.38 m
  • Area of working platform: 0.75 x 2.85 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI WIDE P2 - THE UNIVERSAL TOWER FOR VERY HIGH-LEVEL WORK WITH DOUBLE-WIDTH WORK DECK

The Uni Wide P2 universal tower with double-width work deck  provides a convenient platform when working at height.

  • Ideal for working with bulky materials while assuring the necessary freedom of movement.
  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrailsand diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.6 m and above; alternatively with tower supports.
  • For even more safety and even more convenient access, suspended ladders with wide steps.
  • Working height 13.38 m
  • Area of working platform: 1.50 x 2.85 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI COMFORT – THE UNIVERSAL TOWER WITH CONVENIENT STAIRWAY ACCESS

The compact Uni Comfort tower is ideally suited for assembly and maintenance work etc.



  • The convenient stairway access with full-length handrail facilitates frequent ascents and descents, permits very high-level work and leaves the hands free to carry tools and material.
  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck with full-length opening for convenient internal access.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Outriggers for base widening can be attached without using tools. If these are fitted with castors, the tower can be moved safely without being dismantled.
  • Working height 14.2 m
  • Area of working platform: 1.50 x 1.80 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

STARO ROLLING TOWER – THE READY-TO-USE TOWER FOR FREEDOM OF MOVEMENT AND A LARGE WORKING AREA

The Staro rolling tower is the "ready-to-use" tower with a large work deck. It is indispensable for fast work on large ceiling surfaces or for assembling components or for installation work underneath the ceiling. The large work surface offers ample freedom of movement and space for storing tools and materials ready to hand.



  • Aluminium basic tower; aluminium guardrails and intermediate guardrails snap in easily .
  • Work decks with aluminium frame and plywood insert (BFU 100).
  • Sturdy castors (dia. 150 mm) with concentric load transmission after locking for outstanding stability. Leg tube (1.95 m long) with holes 11 cm apart for height adjustment.
  • Working height 3.90 m
  • Area of working platform: 1.95 x 1.95 m.
  • Permissible live load: 1.5 kN/m² (scaffolding group 2).



You can find further information in the corresponding Instruction for Assembly and Use.

ALUMINIUM BRIDGING BEAM 600 – THE WORK DECK FOR LENGTHS UP TO 10 M

The Aluminium Bridging Beam 600 is a time-saving and practical component. Because it is manufactured from lightweight aluminium sections, it is both light and strong. Depending on the application, it is also possible to attach a three-piece side protection to the Aluminium Bridging Beam.



  • Conforms to DIN EN 12811-1.
  • Permissible load class 2 (1.5 kN/m² up to 10 m length)
  • Permissible load class 3 (2 kN/m² up to 7.1 m length)



You can find further information in the corresponding Instruction for Assembly and Use.

ZIFA P2 – THE READY-TO-USE TOWER FOR WORK AT LOW HEIGHTS


Folded together flat for storage and transport – unfold it, insert the deck. That's all.

  • The basic unit will fit through standard room doors when assembled and fully loaded.
  • Aluminium basic tower for alternating-sequence push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100), also as an access deck for risk-free internal access.
  • Strong and permanently fitted castors ensure excellent stability.
  • Working height: 7.76 m
  • Area of working platform: 0.75 x 1.80 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI LIGHT P2 – THE PRACTICAL ROLLING TOWER WHEN WORKING IN RESTRICTED SPACES

The UniLight Tower P2 is a compact and lightweight rolling tower for safe and convenient work wherever you used to need a ladder – the generous 1.3 m² platform area permits unimpeded movement and provides space for tools and material.



  • Its low weight and convenient dimensionsmake it very easy to transport, even in a van.
  • Aluminium ladder frames for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platform already integrated.
  • Strong castors (permanently fitted) ensure outstanding stability.
  • Rigid steel mobile beam to widen the base; with spigots for optional mounting of ladder frames when working on ceilings or walls.
  • Working height: 9.26 m
  • Area of working platform: 0.75 x 1.80 m.



You can find further information in the corresponding Instruction for Assembly and Use.

UNI COMPACT P2 AS A COMPACT UNIVERSAL TOWER WITH DOUBLE-WIDTH WORK DECK

The universal Uni Compact P2 tower with double-width work deck yet with compact basic dimensions – offers ample room for working at heights, even with materials, while still leaving plenty of freedom of movement.



  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrailsand diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.38 m and above.
  • Working height 10.38 m
  • Area of working platform: 1.5 x 1.8 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI STANDARD P2 – THE MOST VERSATILE ROLLING TOWER FOR VERY HIGH-LEVEL WORK

The Uni Standard P2 – for work on walls and ceilings, on machinery, in technical facilities, factories and warehouses, indoors and outdoors.



  • Aluminium ladder frames for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100), -also as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: rigid or telescopic mobile steel beam , with spigots for optional mounting of ladder frames for work on ceilings and walls; alternatively with tower supports.
  • For even more safety and even more convenient access, suspended ladders with wide steps.
  • Working height 13.38 m
  • Area of working platform: 0.75 x 2.85 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI WIDE P2 - THE UNIVERSAL TOWER FOR VERY HIGH-LEVEL WORK WITH DOUBLE-WIDTH WORK DECK

The Uni Wide P2 universal tower with double-width work deck  provides a convenient platform when working at height.

  • Ideal for working with bulky materials while assuring the necessary freedom of movement.
  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrailsand diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck for risk-free internal access; statutory rest platforms already integrated.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Widening of base: with steel mobile beam, telescope option for work on ceilings or walls, only needed at working heights of 8.6 m and above; alternatively with tower supports.
  • For even more safety and even more convenient access, suspended ladders with wide steps.
  • Working height 13.38 m
  • Area of working platform: 1.50 x 2.85 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

UNI COMFORT – THE UNIVERSAL TOWER WITH CONVENIENT STAIRWAY ACCESS

The compact Uni Comfort tower is ideally suited for assembly and maintenance work etc.



  • The convenient stairway access with full-length handrail facilitates frequent ascents and descents, permits very high-level work and leaves the hands free to carry tools and material.
  • Aluminium ladder frames (1.5 m wide) for push-fit assembly; aluminium guardrails and diagonal braces snap in easily.
  • Work decks with aluminium frame and plywood insert (BFU 100) as an access deck with full-length opening for convenient internal access.
  • Sturdy castors with concentric load transmission after locking for outstanding stability, and steel spindles for levelling.
  • Outriggers for base widening can be attached without using tools. If these are fitted with castors, the tower can be moved safely without being dismantled.
  • Working height 14.2 m
  • Area of working platform: 1.50 x 1.80 m.
  • Permissible live load: 2 kN/m² (scaffolding group 3).



You can find further information in the corresponding Instruction for Assembly and Use.

STARO ROLLING TOWER – THE READY-TO-USE TOWER FOR FREEDOM OF MOVEMENT AND A LARGE WORKING AREA

The Staro rolling tower is the "ready-to-use" tower with a large work deck. It is indispensable for fast work on large ceiling surfaces or for assembling components or for installation work underneath the ceiling. The large work surface offers ample freedom of movement and space for storing tools and materials ready to hand.



  • Aluminium basic tower; aluminium guardrails and intermediate guardrails snap in easily .
  • Work decks with aluminium frame and plywood insert (BFU 100).
  • Sturdy castors (dia. 150 mm) with concentric load transmission after locking for outstanding stability. Leg tube (1.95 m long) with holes 11 cm apart for height adjustment.
  • Working height 3.90 m
  • Area of working platform: 1.95 x 1.95 m.
  • Permissible live load: 1.5 kN/m² (scaffolding group 2).



You can find further information in the corresponding Instruction for Assembly and Use.

ALUMINIUM BRIDGING BEAM 600 – THE WORK DECK FOR LENGTHS UP TO 10 M

The Aluminium Bridging Beam 600 is a time-saving and practical component. Because it is manufactured from lightweight aluminium sections, it is both light and strong. Depending on the application, it is also possible to attach a three-piece side protection to the Aluminium Bridging Beam.



  • Conforms to DIN EN 12811-1.
  • Permissible load class 2 (1.5 kN/m² up to 10 m length)
  • Permissible load class 3 (2 kN/m² up to 7.1 m length)



You can find further information in the corresponding Instruction for Assembly and Use.

EXPANSIONS AND VARIANTS

BRACKET DECK SURFACES – WIDENING OF THE WORKING SURFACE FOR UNI STANDARD AND UNI WIDE

Special designs are individualised tower structures that make work safer and faster at many construction sites.



  • Subsequent fitting to the complete rolling tower is possible
  • Quick and easy widening of the working surface
  • by up to 1.5 m
  • Permissible live load: 1.5 kN/m² (scaffolding group 2)

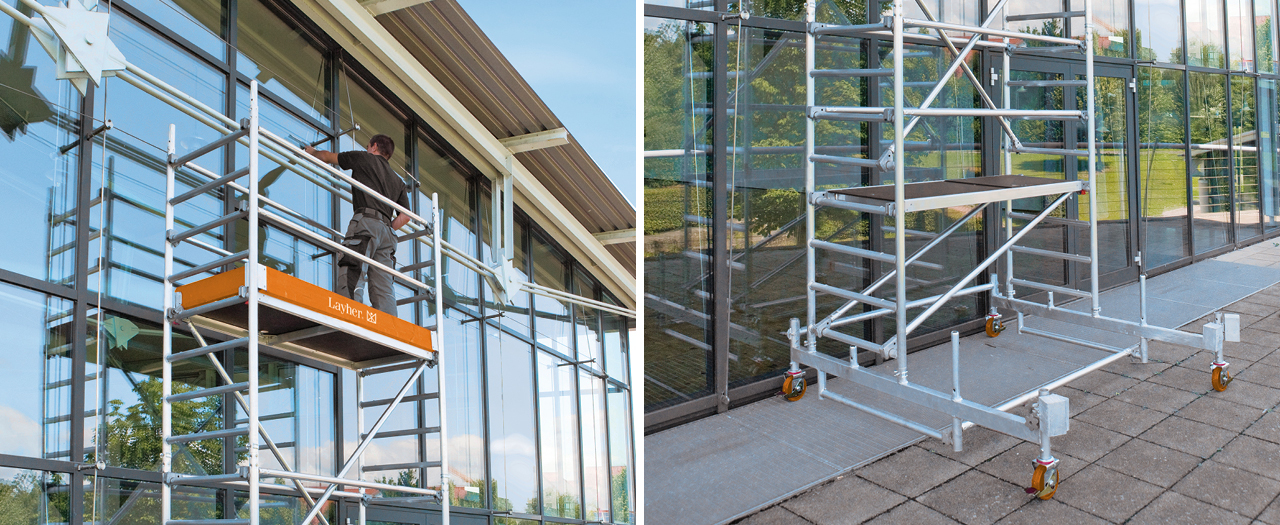

TOWER SUPPORTS FOR UNI STANDARD P2 & UNI WIDE P2

  • The Uni Standard P2 and Uni Wide P2 rolling towers are also available with tower supports.
  • They are supplied complete as a set in a wide range of assembly heights up to a working height of 13.2 m.
  • The use of Layher tower supports means that the mobile beam is no longer required and the overall weight of the tower is reduced by up to 43 kg. In addition, fewer ballast weights are needed.

STAIR KIT SOLUTION

The stair kit permits safer and more flexible use of rolling tower parts in stairwells: it does not require any modification work, since the stair remains accessible despite the scaffolding.



  • Use of rolling tower parts in stairwells up to platform height of 5 m.
  • Passageways to suit the site – complete blocking off of the stair not needed.
  • Adaptation to stair steps – riser and tread – is possible.
  • Passageway also as entrance for upward access.

BRACKET DECK SURFACES – WIDENING OF THE WORKING SURFACE FOR UNI STANDARD AND UNI WIDE

Special designs are individualised tower structures that make work safer and faster at many construction sites.



  • Subsequent fitting to the complete rolling tower is possible
  • Quick and easy widening of the working surface
  • by up to 1.5 m
  • Permissible live load: 1.5 kN/m² (scaffolding group 2)

TOWER SUPPORTS FOR UNI STANDARD P2 & UNI WIDE P2

  • The Uni Standard P2 and Uni Wide P2 rolling towers are also available with tower supports.
  • They are supplied complete as a set in a wide range of assembly heights up to a working height of 13.2 m.
  • The use of Layher tower supports means that the mobile beam is no longer required and the overall weight of the tower is reduced by up to 43 kg. In addition, fewer ballast weights are needed.

STAIR KIT SOLUTION

The stair kit permits safer and more flexible use of rolling tower parts in stairwells: it does not require any modification work, since the stair remains accessible despite the scaffolding.



  • Use of rolling tower parts in stairwells up to platform height of 5 m.
  • Passageways to suit the site – complete blocking off of the stair not needed.
  • Adaptation to stair steps – riser and tread – is possible.
  • Passageway also as entrance for upward access.

LAYHER SAFETY ASSEMBLY P2

OUR STAFF WOULD BE HAPPY TO PROVIDE FURTHER ASSISTANCE
